T4.165
165 hp
> Toyota base engine
> Common Rail injection system
> Turbo & Intercooler
> Big displacement
> High torque

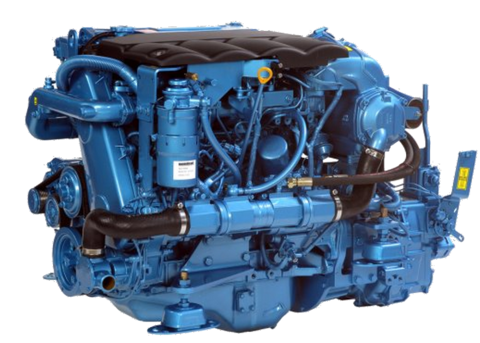

Eco-friendly and robust 4-cylinder diesel engine based on the Japanese Toyota engine, injection system (E-TVCS) and the combustion chamber is optimized for reduced emissions and fuel consumption. Technological innovations from Toyota also provides the lowest noise and vibration level. Nanni's long experience in marinisation of this type of engine seals Nanni T4.165 as a quality product.
Technical details
| Rated power | 165 / 121,5 (hp / kW) |
| Rated rpm | 3400 |
| Number of cylinders | 4 in-line |
| Displacement | 3,0 liter |
| Bore and stroke | 96 x 103 mm |
| Compression ratio | 17,9:1 |
| Combustion system | Common Rail (Direct) |
| Intake | Turbo compressor & Intercooler |
| Cooling | Closed cooling with heat exchanger |
| El. equipment / Alternator | 12V /100A |
| Transmission | Mechanical or hydraulic gearbox |
| Engine Max Install. Angle | 7° (dynamic) |
| Dry weight with TTM40A | 362 kg |
| Certifications | US-EPA, EU-RCD, BSO |
