T4.200
200 hp

> Toyota base engine
> Common Rail injection system
> Turbo & Intercooler
> Big displacement
> High torque

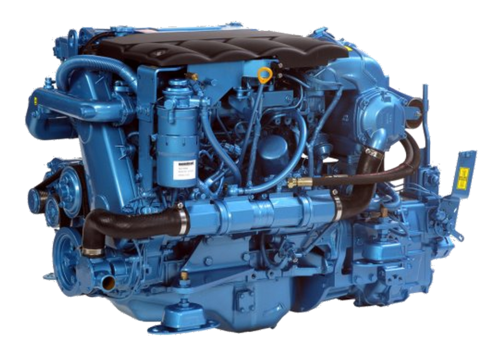

Eco-friendly and robust 4-cylinder diesel engine based on the Japanese Toyota engine, injection system (E-TVCS) and the combustion chamber is optimized for reduced emissions and fuel consumption. Technological innovations from Toyota also provides the lowest noise and vibration level. Nanni's long experience in marinisation of this type of engine seals Nanni T4.200 as a quality product.

Technical details
Rated power200 / 147,2 (hp / kW)
Rated rpm3400
Antall sylindere4 in-line
Displacement3,0 liter
Bore and stroke96 x 103 mm
Compression ratio17,9:1
Combustion systemCommon Rail (Direct)
IntakeTurbo compressor & Intercooler
CoolingClosed cooling with heat exchanger
El. equipment / Alternator12V / 100A
TransmissionMechanical or hydraulic gearbox
Engine Max Install. Angle7° (dynamic)
Dry weight with TTM40A362 kg
Certifications EPA, EU-RCD, BSO
