6135AFM
365 - 575 hp

> Water cooled exhaust manifold
> Unit injector
> Heat exchanger or keel cooling
> High torque
> Low RPM

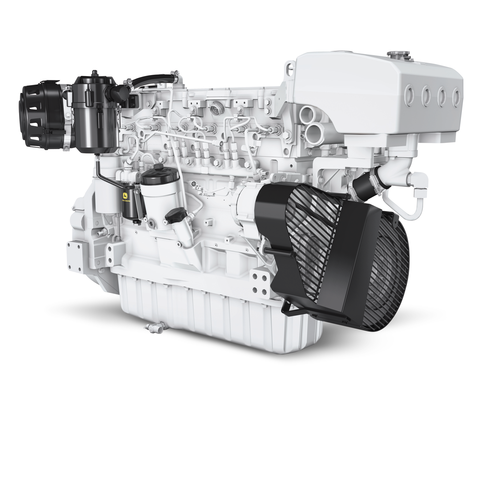

6135AFM85 is a modern common rail engine optimized for low emissions and low fuel consumption. The engine has a water cooled turbocharger and exhaust manifold, the charge air cooler is freshwater cooled and this results in low surface temperatures for reliable operation. High torque provides good response when maneuvering. 24 volt electrical system with Nogva Motor Computer monitoring system.

AFM-range is turbocharged and aftercooled, air-to-coolant. Can be delivered with heat exchanger or keel cooling.

Model
Effect
Engine rpm
Rating
Emission
Leaflet
Drawing
6135AFM85
365 hp
1800 rpm
Tier 3
6135AFM85
425 hp
1900 rpm
Tier 3
6135AFM85
500 hp
2000 rpm
Tier 3
6135AFM85
575 hp
2100 rpm
Tier 3

Technical details
Displacement13 liter
Number of cylinders6 in-line
Bore and stroke132 x 165 mm
Compression ratio15.3:1
Fuel injectionUnit injector
AspirationTurbocharged and aftercooled
Cooling systemHeat exchanger or keel cooling
Weight (dry)1410 kg
